Semantic Dictionary Lookup + Resolver

Attach standardized semantic identifiers (ECLASS / IEC CDD) to SubmodelElements. This is especially important for "generic frame" templates (e.g., Technical Data) where users must define domain-specific properties and need correct semantics.

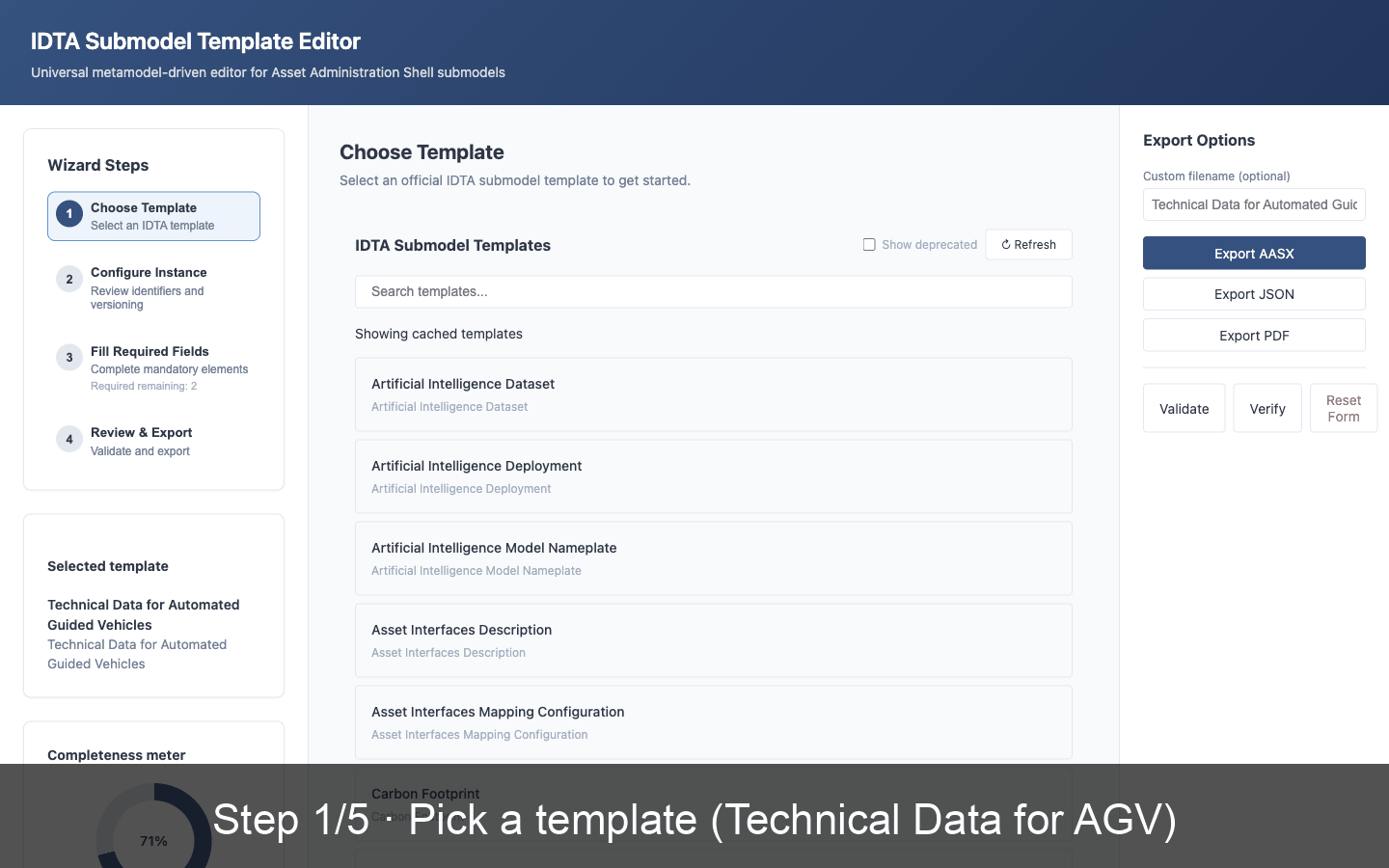

Semantic Lookup Live Demo

Goal

Enable users to search, select, and apply standardized semantic identifiers while preserving metadata and keeping the Fetcher → Parser → Hydrator → Validation pipeline intact.

Why Semantic Lookup Matters

  1. AAS semantics are required for interoperability - matching strategies and ID examples
  2. IDTA submodel context stresses dictionaries like ECLASS and IEC CDD
  3. ECLASS access is certificate-authenticated and costed per IRDI → caching + throttling are required
  4. Dictionary data types can suggest correct AAS element type/valueType (e.g., STRING_TRANSLATABLE)

Features (MVP)

  • Semantic Search UI: search box + provider/kind/language filters, results list, details drawer, apply-to-field
  • Backend semantic service: /api/semantic/providers, /api/semantic/search, /api/semantic/resolve, /api/semantic/apply-preview
  • ECLASS provider: offline index + optional online webservice (mTLS, rate-limited)
  • IEC CDD provider: offline index first, pluggable for future APIs
  • Resolver: given semanticId, show label/definition from available providers

Out of Scope (Initially)

  • Global ConceptDescription registry sync
  • ECLASS↔IEC CDD reconciliation
  • Bundling licensed datasets in the repo

Apply Logic

  • Prefer IRI when available, otherwise IRDI string
  • Apply preview suggests element type/valueType based on dictionary datatype
  • Optional ConceptDescription embedding at export time (configurable)

Offline Index

The offline index supports JSON/CSV and SQLite FTS. See: indexing.md

Configuration

Variable Description Default
SEMANTIC_ENABLED Enable semantic lookup true
SEMANTIC_PREFER_IRI Prefer IRI when available true
SEMANTIC_ECLASS_OFFLINE_ENABLED Enable ECLASS offline index true
SEMANTIC_IEC_CDD_OFFLINE_ENABLED Enable IEC CDD offline index true
SEMANTIC_ECLASS_ONLINE_ENABLED Enable ECLASS online webservice false
ECLASS_API_BASE ECLASS webservice base URL -
ECLASS_SEARCH_URL Search endpoint (relative or absolute) -
ECLASS_RESOLVE_URL Resolve endpoint (relative or absolute) -
ECLASS_CERT_PATH Client certificate path -
ECLASS_KEY_PATH Client key path -
SEMANTIC_CACHE_TTL_SECONDS Semantic cache TTL (sec) 86400
SEMANTIC_SEARCH_RATE_LIMIT_PER_MIN Search rate limit 60
SEMANTIC_RESOLVE_RATE_LIMIT_PER_MIN Resolve rate limit 120
ECLASS_INDEX_PATH Offline index path (JSON/CSV/SQLite) ./cache/semantic/eclass.json
IEC_CDD_INDEX_PATH Offline index path (JSON/CSV/SQLite) ./cache/semantic/iec_cdd.json
SEMANTIC_EMBED_CONCEPT_DESCRIPTIONS Embed ConceptDescriptions on export false

API Endpoints

  • GET /api/semantic/providers - List available semantic providers
  • GET /api/semantic/search - Search semantic dictionaries
  • GET /api/semantic/resolve - Resolve an ID/IRI to metadata
  • POST /api/semantic/apply-preview - Suggest semanticId + type warnings
