Passport Mode (Digital Product Passport Visualization)

Switch between Editor and Passport views to visualize submodel data as Digital Product Passport cards. The system auto-detects template types and renders appropriate card styles.

Preview

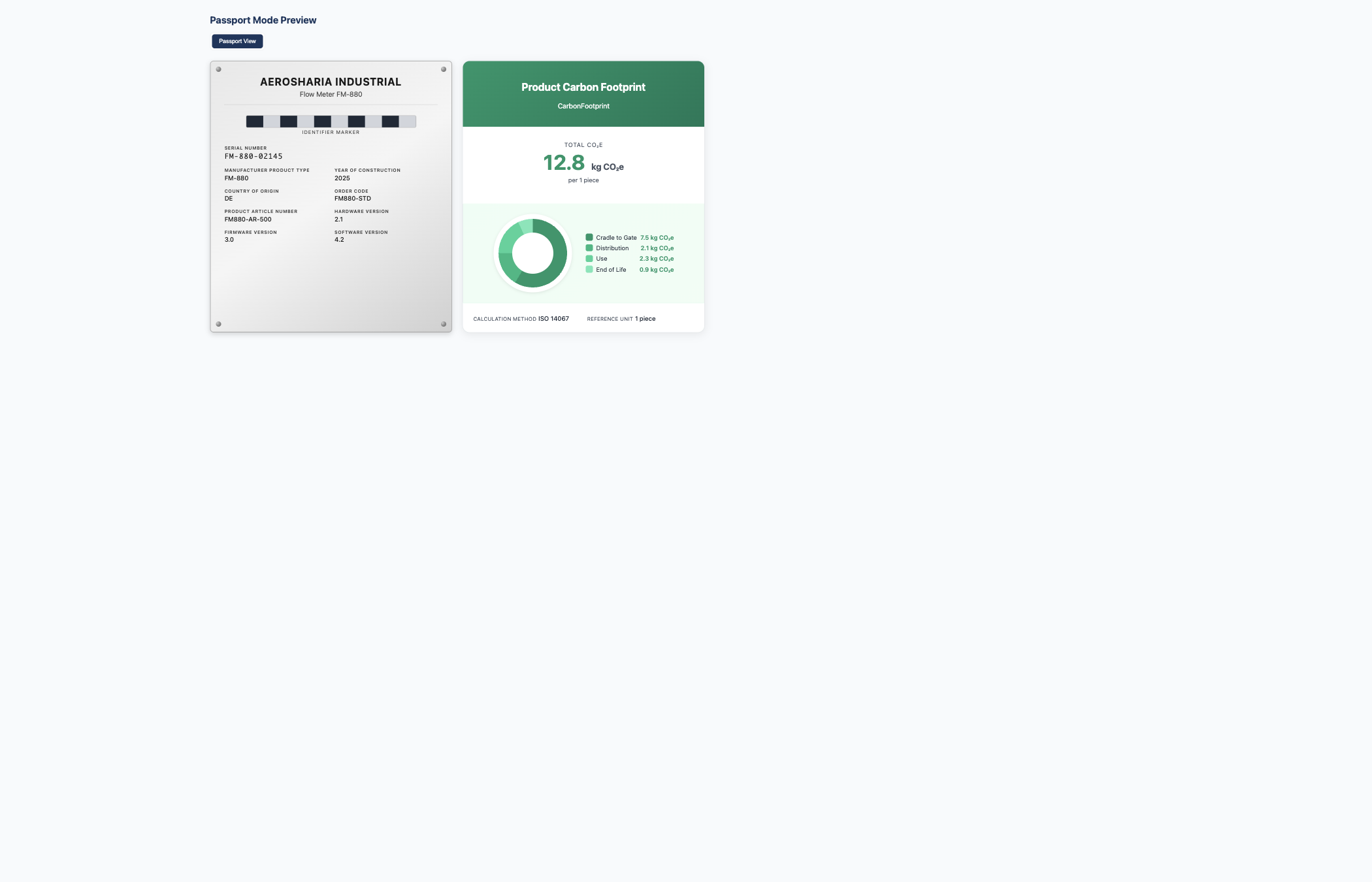

The preview below shows how Nameplate and Carbon Footprint templates render side-by-side for quick review.

Passport Mode Preview

Supported Card Types

Template Card Type Visual Style
IDTA 02006 Nameplate NameplateCard Metal sticker with manufacturer info
IDTA 02023 Carbon Footprint PCFCard CO₂e metric display + breakdown pie chart (when available)
Other templates GenericCard Clean key-value layout
Screenshot Description

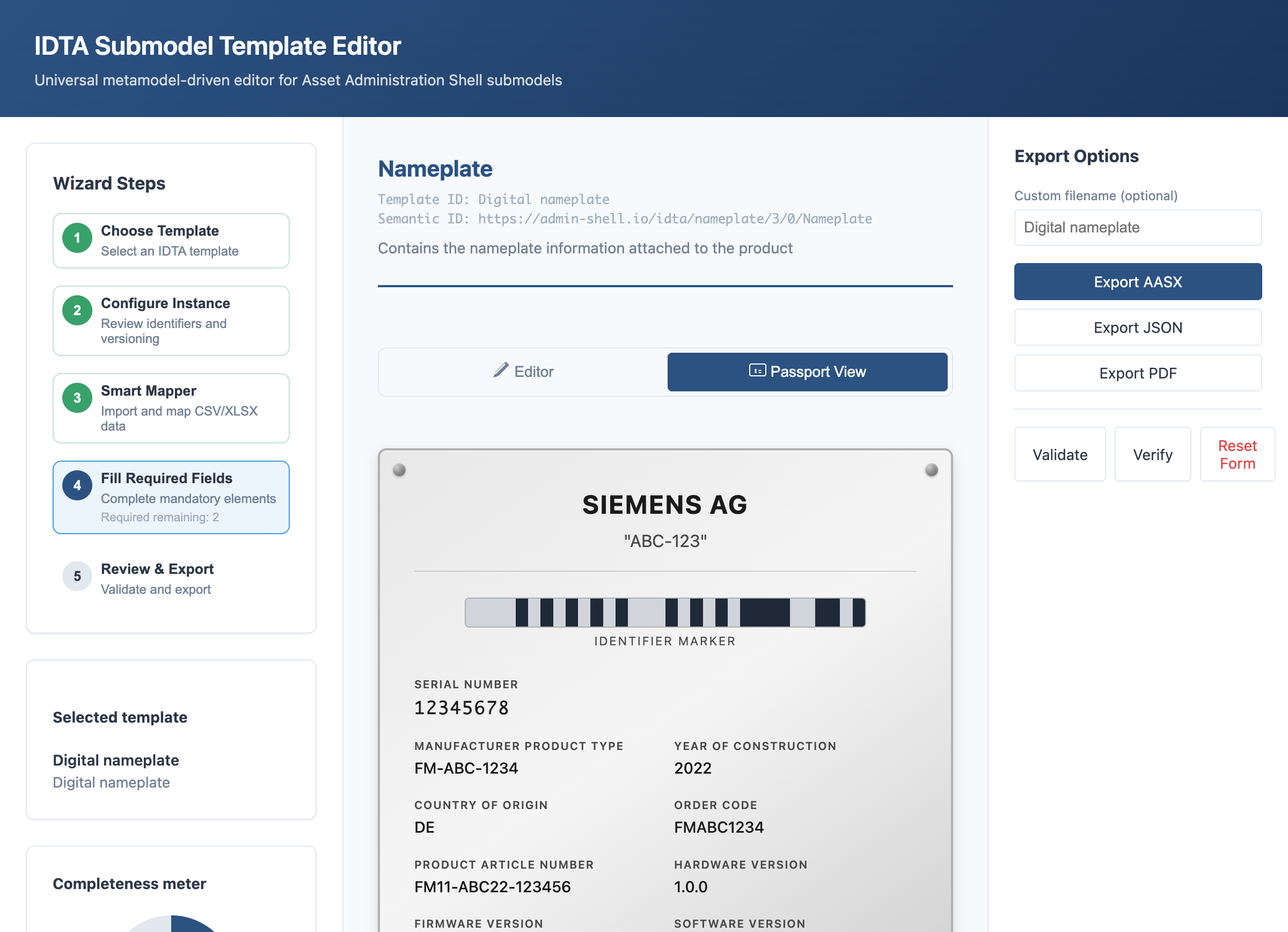

Nameplate Card NameplateCard displays manufacturer, serial number, product type, and version info in a metal sticker style

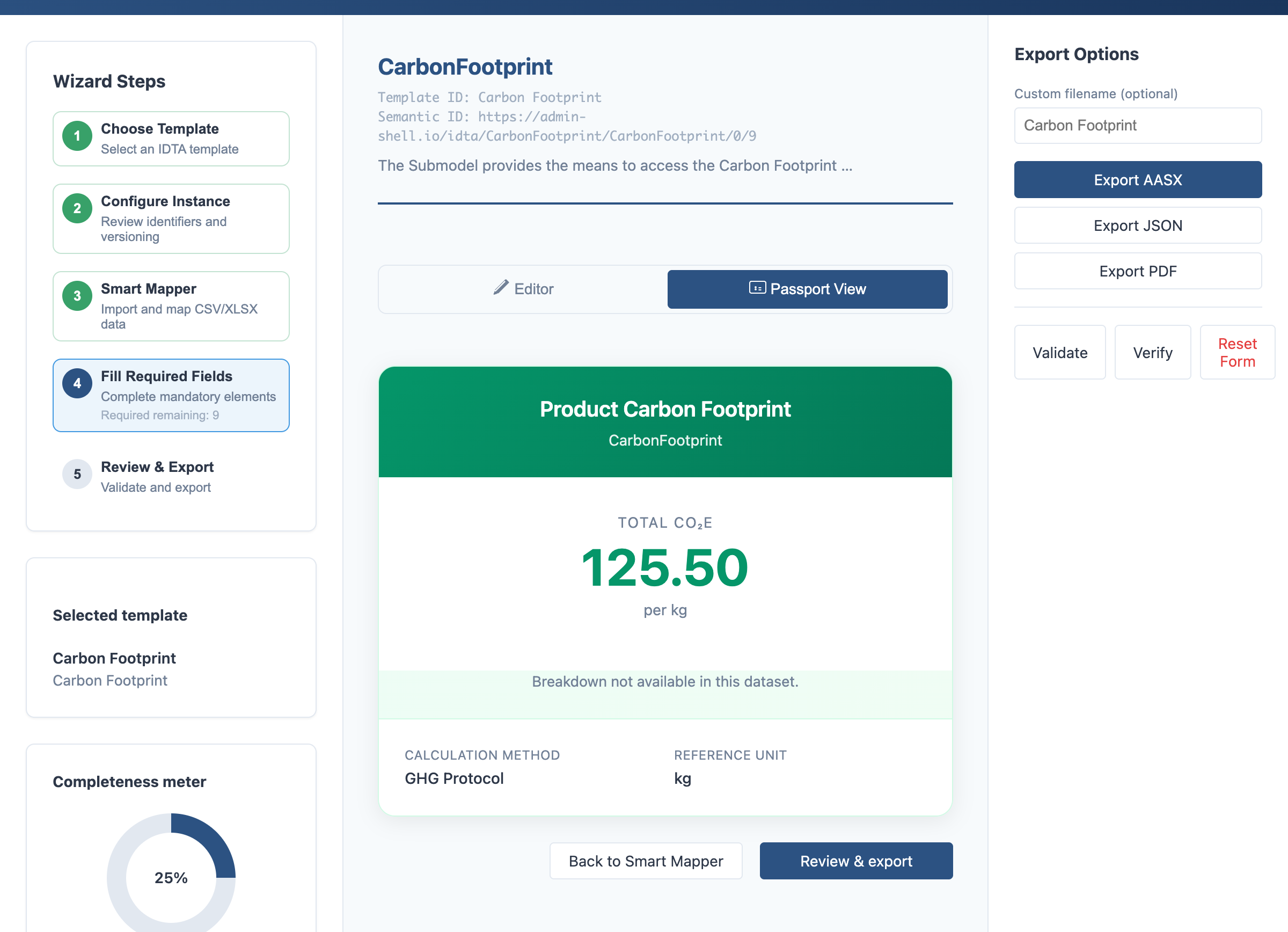

PCF Card PCFCard shows total CO₂e metric with calculation method and reference unit

Features

  • Mode Toggle: Switch between Editor and Passport views with one click
  • Template Detection: Auto-detects Nameplate (IDTA 02006) and PCF (IDTA 02023) via semanticId/submodelId + templateName + idShort
  • Schema-Indexed Extraction: Resolves schema + form contexts to pull values safely without hardcoded paths
  • Deterministic Markers: Identifier marker is generated from real IDs (no random or placeholder visuals)
  • PCF Visualization: SVG pie chart + legend + accessible table, with clear fallback when breakdown is missing
  • Safe Rendering: Strict numeric parsing, language fallback, safe URL handling, depth-limited GenericCard
  • Live Updates: Form changes reflect instantly in passport view
  • Units by Template: PCF units render only when provided by the schema
  • Print Support: Clean print stylesheet for card output
  • Accessibility: ARIA labels, keyboard navigation, reduced motion support

Template Detection

The system uses a registry pattern with priority-based detection:

  1. semanticId / submodelId patterns - highest priority (e.g., 02006, 02023)
  2. templateName patterns - medium priority
  3. idShort patterns - fallback (e.g., Nameplate, CarbonFootprint)

Detection is case-insensitive and supports ECLASS IDs.

Testing

  • Unit tests cover registry detection, schema indexing, value extraction, and pie chart math
  • Integration tests verify toggle behavior and live form updates
